Name: PVC Tee 45°
SKU: 33889
Availability: InStock

Description

With fittings made of PVC, the so-called PVC fittings, piping of aquariums or entire systems can be realized without any problems. The various fittings are matched to each other and thus fit together perfectly. In addition to elbows, pipes and bends, various fittings and threaded pieces are available, with which pumps and filters can be firmly connected. The individual parts are permanently connected with PVC adhesive.

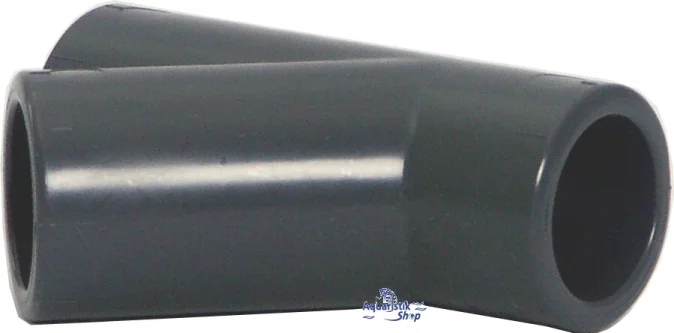

PVC Tee 45° This T-piece has 3 adhesive sockets. The middle connection is attached at an angle of 45°. The T-piece is made of injection molding and pressure resistant up to 16 bar.

Available in the following sizes:
10 mm
12 mm
16 mm
20 mm
25 mm
32 mm
40 mm
50 mm
63 mm

Tee 45°

Size	d	Z1	Z2	B
10 mm	10 mm	18 mm	4 mm	12 mm
12 mm	12 mm	21 mm	4 mm	12 mm
16 mm	16 mm	25 mm	5 mm	14 mm
20 mm	20 mm	29,5 mm	6 mm	16 mm
25 mm	25 mm	35,5 mm	7,5 mm	16 mm
32 mm	32 mm	44,5 mm	9 mm	22 mm
40 mm	40 mm	56 mm	10 mm	26 mm
50 mm	50 mm	69 mm	12 mm	31 mm
63 mm	63 mm	86 mm	14 mm	38 mm
