Name: PVC Reducing bash long
SKU: 6360257542
Availability: InStock

Description

With PVC fittings you can realise a complete pipe system for your aquarium. You can connect pumps, filters and more than one aquarium to a system. All PVC fittings will be glued with a special PVC glue.

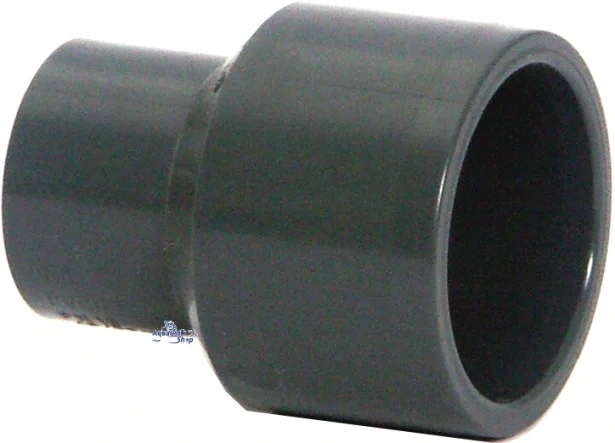

PVC reducing bash long This reduction enables the connection of two components with different diameters. The reduced side of the component can be used both externally and internally. The reducing bash is made of injection molding and pressure resistant up to 16 bar.

the following sizes are available:
– 10/6×8 mm
– 12/8×10 mm
– 16/12×8 mm
– 16/12×10 mm
– 20/16×10 mm
– 20/16×12 mm
– 25/20×12 mm
– 25/20×16 mm
– 32/25×16 mm
– 32/25×20 mm
– 40/32×16 mm
– 40/32×20 mm
– 40/32×25 mm
– 50/40×20 mm
– 50/40×25 mm
– 50/40×32 mm
– 63/50×25 mm
– 63/50×32 mm
– 63/50×40 mm

Reducing bash, large

Size	d1	d2	d3	Z	B	C	D
10/6×8 mm	10 mm	6 mm	8 mm	2 mm	12 mm	12 mm	12 mm
12/8×10 mm	12 mm	8 mm	10 mm	2 mm	12 mm	12 mm	12 mm
16/12×8 mm	16 mm	12 mm	8 mm	6 mm	14 mm	12 mm	12 mm
16/12×10 mm	16 mm	12 mm	10 mm	6 mm	14 mm	12 mm	12 mm
20/16×10 mm	20 mm	16 mm	10 mm	6 mm	16 mm	14 mm	12 mm
20/16×12 mm	20 mm	16 mm	12 mm	6 mm	16 mm	14 mm	12 mm
25/20×12 mm	25 mm	20 mm	12 mm	9 mm	19 mm	16 mm	12 mm
25/20×16 mm	25 mm	20 mm	16 mm	7 mm	19 mm	16 mm	14 mm
32/25×16 mm	32 mm	25 mm	16 mm	9,5 mm	22 mm	19 mm	14 mm
32/25×20 mm	32 mm	25 mm	20 mm	7,5 mm	22 mm	19 mm	16 mm
40/32×16 mm	40 mm	32 mm	16 mm	14,3 mm	26 mm	22 mm	14 mm
40/32×20 mm	40 mm	32 mm	20 mm	12,3 mm	26 mm	22 mm	16 mm
40/32×25 mm	40 mm	32 mm	25 mm	9,3 mm	26 mm	22 mm	19 mm
50/40×20 mm	50 mm	40 mm	20 mm	17 mm	31 mm	26 mm	16 mm
50/40×25 mm	50 mm	40 mm	25 mm	14 mm	31 mm	26 mm	19 mm
50/40×32 mm	50 mm	40 mm	32 mm	11 mm	31 mm	26 mm	22 mm
63/50-25 mm	63 mm	50 mm	25 mm	20,3 mm	38 mm	31 mm	19 mm
63/50-32 mm	63 mm	50 mm	32 mm	17,3 mm	38 mm	31 mm	22 mm
63/50×40 mm	63 mm	50 mm	40 mm	13,3 mm	38 mm	31 mm	26 mm
