Name: PVC Adaptor union with fusion spigot
SKU: 70864527
Availability: InStock

Description

PVC fittings can be used to easily create piping for aquariums or entire systems. The various fittings are matched to each other and therefore fit together perfectly. In addition to elbows, pipes and bends, various screw connections and threaded pieces are available with which pumps and filters can be firmly connected. The individual parts are permanently connected to each other with PVC adhesive.

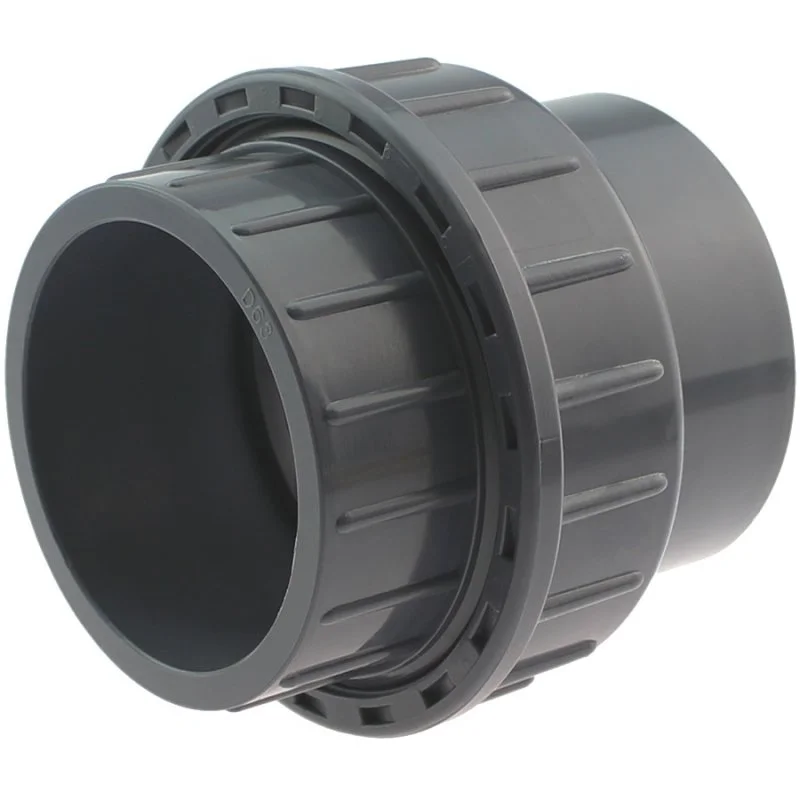

PVC Adaptor union with fusion spigot The screw connection is an openable connection in the pipe system. The fitting has an adhesive sleeve on both sides and is made of injection molding, pressure-resistant up to 16 bar.

available in the following sizes:
– 12 mm
– 16 mm
– 20 mm
– 25 mm
– 32 mm
– 40 mm
– 50 mm
– 63 mm

Adaptor union

Size	d	Z	B	D
12 mm	12 mm	15 mm	12 mm	1/2″
16 mm	16 mm	15 mm	14 mm	3/4″
20 mm	20 mm	15 mm	16 mm	1″
25 mm	25 mm	15 mm	19 mm	1 1/4″
32 mm	32 mm	17 mm	22 mm	1 1/2″
40 mm	40 mm	18 mm	26 mm	2″
50 mm	50 mm	20 mm	31 mm	2 1/4″
63 mm	63 mm	22 mm	38 mm	2 3/4″
