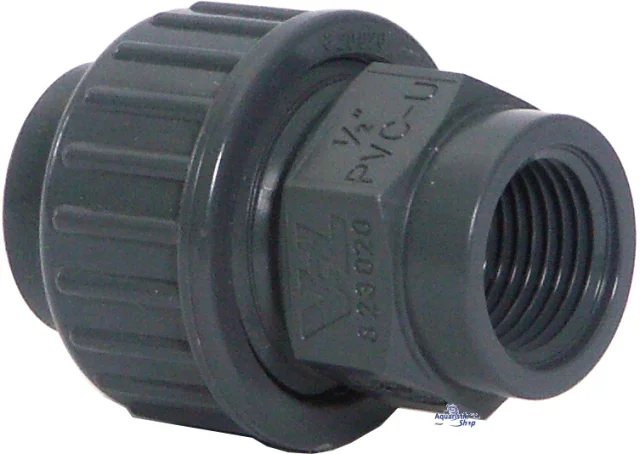

Name: PVC Adaptor union with female thread
SKU: 472
Availability: InStock

Description

with BSP female thread, made of injection moulded, pressure resistant up to 16 bar, the exact dimensions on the details here

Adaptor union, female thread

Size	d1	d2	Z	B	C	D
16 mm x 3/8″	16 mm	3/8″	15 mm	14 mm	14 mm	3/4″
20 mm x 1 1/2″	20 mm	1/2″	15 mm	16 mm	16 mm	1″
25 mm x 3/4″	25 mm	3/4″	15 mm	19 mm	19 mm	1 1/4″
32 mm x 1″	32 mm	1″	20 mm	22 mm	19 mm	1 1/2″
40 mm x 1 1/4″	40 mm	1 1/4″	22 mm	26 mm	19 mm	2″
50 mm x 1 1/2″	50 mm	1 1/2″	23 mm	31 mm	28 mm	2 1/4″
63 mm x 2″	63 mm	2″	27 mm	39 mm	33 mm	2 3/4″
