Name: PVC Adaptor socket, reinforced
SKU: 1378758822
Availability: InStock

Description

With pieces made of PVC, the so-called PVC fittings, piping of aquariums or entire systems can be realized without any problems. The different fittings are matched to each other and therefore fit together perfectly. In addition to elbows, pipes and bends, there are various screw joints and threaded pieces available for the permanent connection of pumps and filters. The individual parts are permanently connected to each other with PVC adhesive.

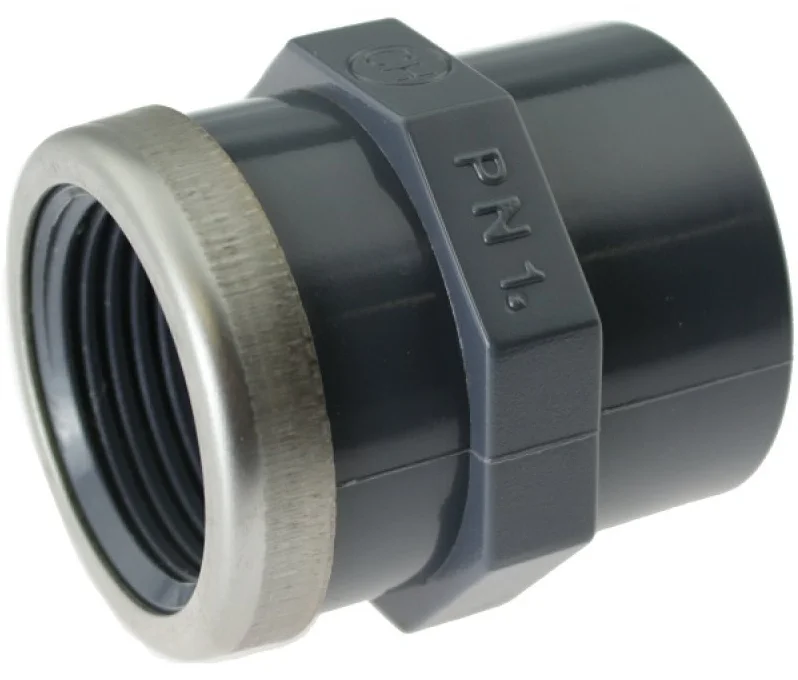

PVC Adaptor Socket, reinforced The adaptor socket is provided with a hexagon and has an adhesive socket on one side, while on the other side there is a pipe female thread in inch size. The adaptor socket is made of injection molding and reinforced, pressure resistant up to 16 bar.

available in the following sizes::
16 mm x 3/8 inch
20 mm x 1/2 inch
25 mmm x 3/4 inch
32 mm x 1 inch
40 mm x 1 1/4 inch
50 mm x 1 1/2 inch
63 mm x 2 inch

Adaptor socket, reinforced

Size	d1	d2	d3	Z	B	S	D
16 mm x 3/8″	16 mm	–	3/8″	3 mm	14 mm	27 mm	15 mm
20 mm x 1/2″	20 mm	–	1/2″	5 mm	16 mm	32 mm	17 mm
25 mm x 3/4″	25 mm	–	3/4″	5 mm	19 mm	36 mm	18 mm
32 mm x 1″	32 mm	–	1″	2 mm	22 mm	46 mm	22 mm
40 mm x 1 1/4″	40 mm	–	1 1/4″	3 mm	26 mm	55 mm	23 mm
50 mm x 1 1/2″	50 mm	–	1 12″	4 mm	31 mm	65 mm	25 mm
63 mm x 2″	63 mm	–	2″	4,7 mm	38 mm	80 mm	28 mm
